Altoparlante da 10" con chassis in acciaio stampato, magnete in neodimio, bobina da 2", potenza 150Watt, impedenza 8ohm

Cod. prodotto: 15300238 Brand: Il prodotto non è presente nei nostri magazzini, ma potrebbe essere disponibile presso il tuo negozio di fiducia. Chiedi al nostro rivenditore a te più vicino.

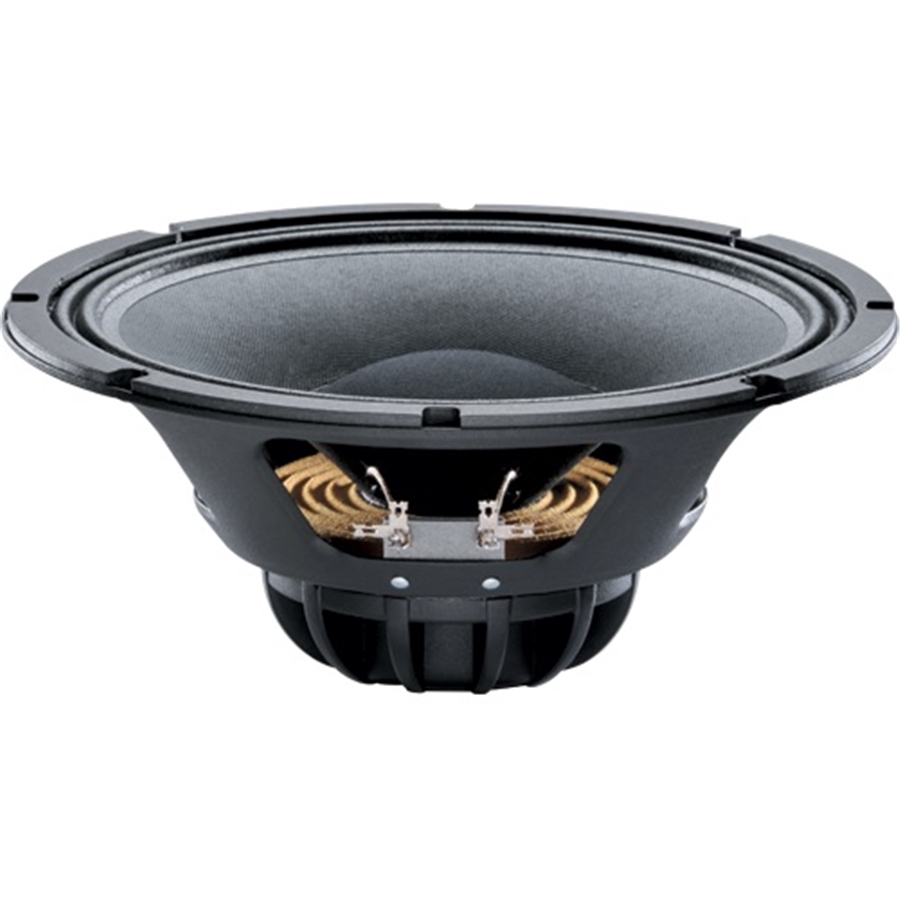

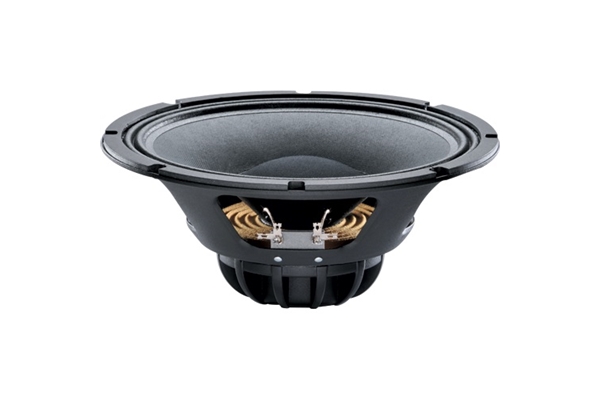

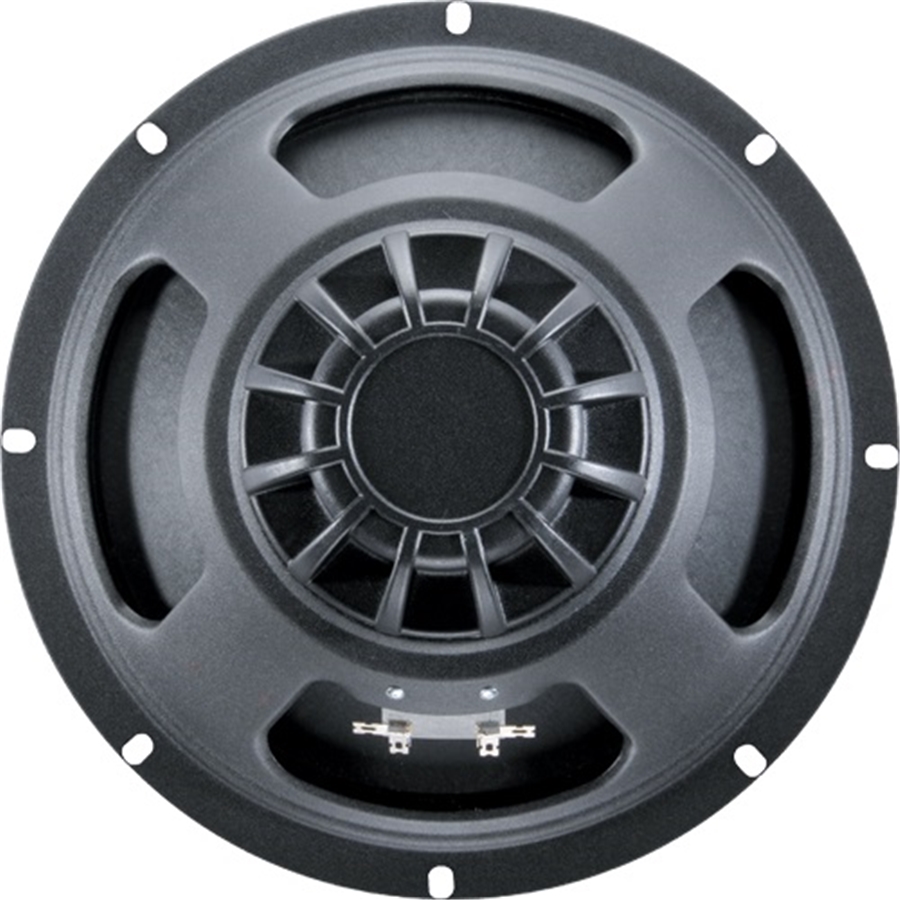

Celestion - TN1020 150W 8ohm - LF Pressed Steel Chassis Loudspeaker - Neodimio
Altoparlante da 10" con chassis in acciaio stampato, magnete in neodimio, bobina da 2", potenza 150Watt, impedenza 8ohm

Caratteristiche
- Compact, high flux, Dual Magnet Motor design
- Vented cast aluminium heatsink

Specifiche Generali
Nominal diameter: 254mm/10in
Power rating(1): 150Wrms
Continuous power rating(2): 300W
Sensitivity(2): 98dB
EIA power rating(3): 250W
Nominal impedance: 8ohm
Frequency range: 65-4,000Hz
Voice coil diameter: 50mm/2"
Chassis type: Pressed steel
Magnet type: Neodymium
Coil material: Round copper
Former material: Polyimide
Cone material: Kevlar loaded paper
Surround material: Cloth-sealed
Suspension: Single
Xmax(3): 2mm/0.079in
Gap depth: 8mm/0.32in;
Voice coil winding width: 12mm/0.47in

Parametri di Thiele-Small(4)
D: 0.21m/8.27"
Fs: 95Hz
Mms: 29.88g/1.05oz
Qms: 3.164
Qes: 0.451
Mmd: 23.18g/0.82oz
Qts: 0.395
Re: 5.63ohm
Vas: 16.01lt/0.57ft3
BI: 14.93Tm
Cms: 0.09mm/N
Rms: 5.63kg/s
Le (at 1kHz): 0.6mH

Informazioni di Montaggio
Overall diameter: 256mm/10.08"
Overall depth: 110mm/4.33"
Cut-out diameter: 229mm/9.02in
Mounting slot dimensions: 8mm x 6mm/0.31in x 0.24in
Number of mounting slots: 8
Mounting PCD range: 245mm/9.65"
Unit weight: 1.5kg/3.4lb

Note
(1)Tested for two hours using a continuous, band-limited pink noise signal as per AES standard.
Power calculated on minimum impedance. Loudspeaker tested in free air.
(2)Continuous Power Rating is defined as 3dB greater than the AES rating
(3)Measured on axis at 1W, 1m in 2pi anechoic environment.
(4)Xmax derived from: (voice coil winding width-gap depth)/2.
(5)Small signal parameters measured after unit subjected to pre-conditioning signal.
