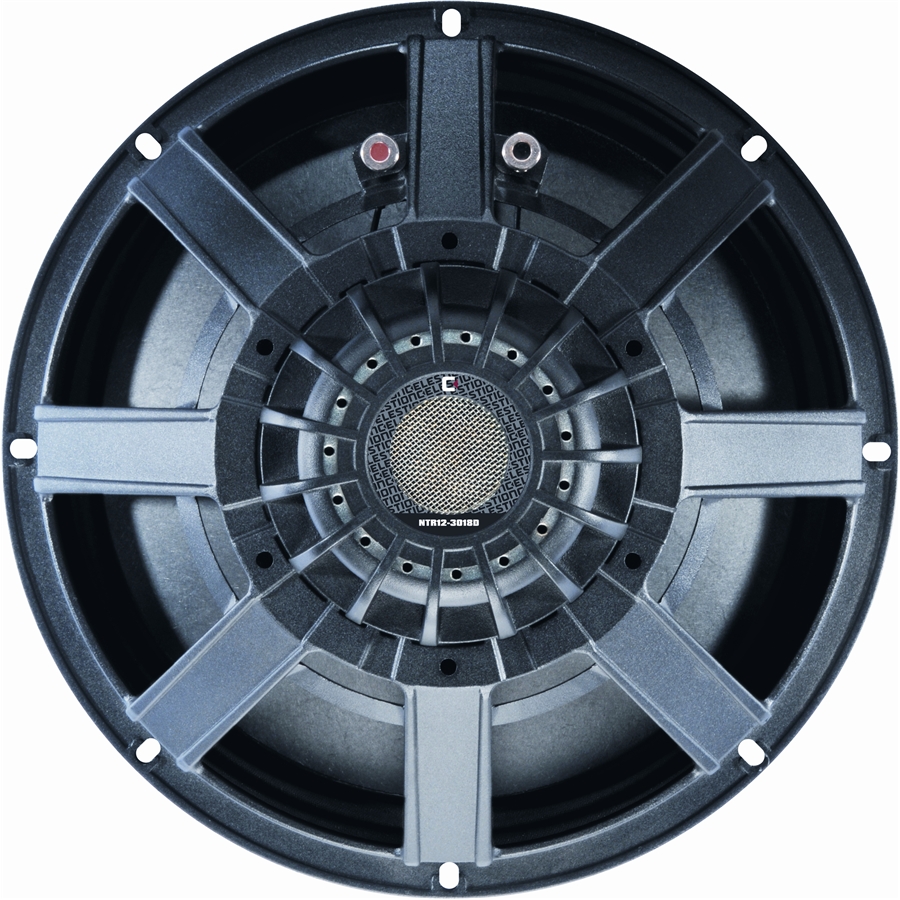

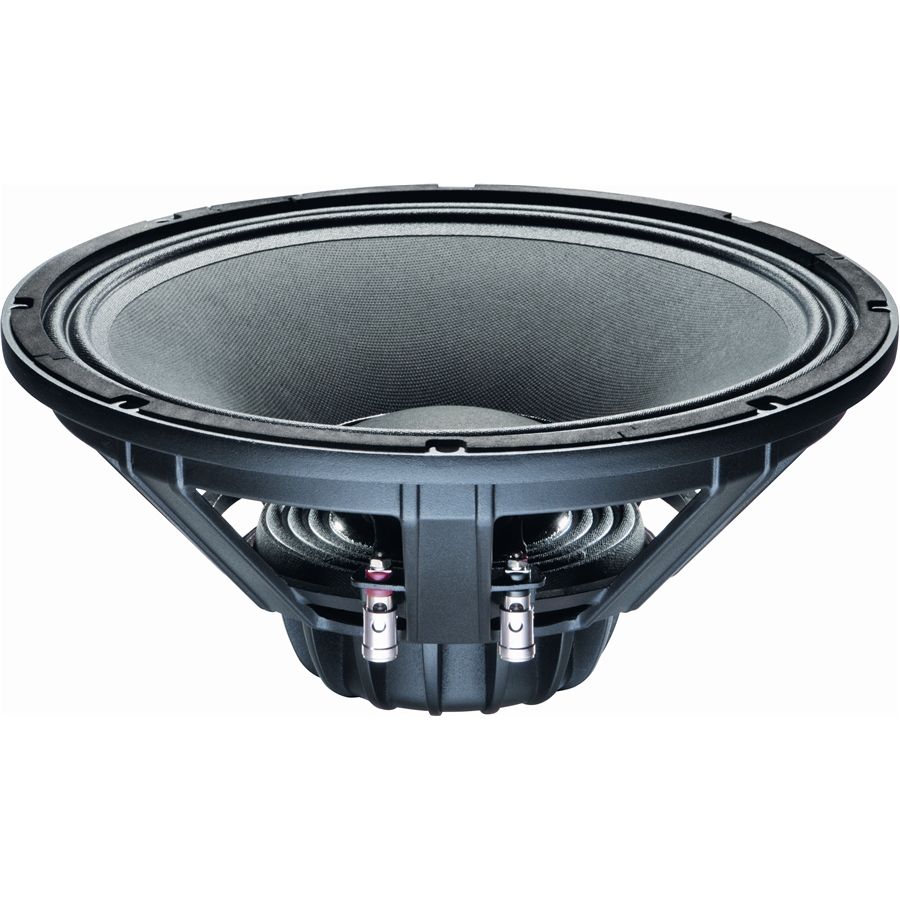

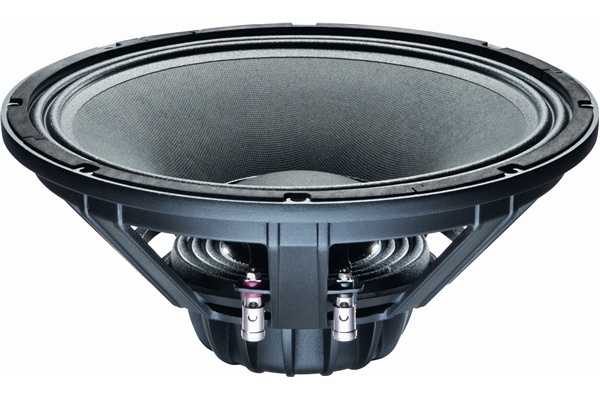

Celestion - NTR12-3018D 350W 8ohm LF Neodimio

Celestion - NTR12-3018D 350W 8ohm - LF Die Cast Chassis Loudspeaker - Neodimio
Altoparlante da 12" con chassis in fusione d'alluminio, magnete in neodimio, bobina da 3", potenza 350Watt, impedenza 8ohm

Caratteristiche
- 12" neodymium woofer offers 350Wrms (AES standard) power handling and 98dB sensitivity
- 3" high temperature Inside/Outside voice coil efficiently dissipates heat, preventing sensitivity loss through thermal compression
- "M-roll" surround provides progressive excursion control, yielding a smooth response even at extremes of frequency range
- Extremely lightweight design combined with a highly efficient magnet assembly results in exceptional power-to-weight ratio
- Intelligent heat management in both chassis and magnet assembly design further minimises distortion

Specifiche Generali
Nominal diameter: 305mm/12in
Power rating(1): 350Wrms
Nominal impedance: 8ohm
Sensitivity(2): 98dB
Frequency range: 50-4000Hz
Voice coil diameter: 75mm/3in
Chassis type: Cast aluminium
Magnet type: Neodymium
Coil material: Round copper
Former material: Glass fibre
Cone material: Kevlar loaded paper
Surround material: Cloth sealed
Suspension: Single
Xmax(3): 4mm/0.16in
Gap depth: 8mm/0.32in
Voice coil winding width: 16mm/0.63in

Parametri di Thiele-Small
D: 0.26m/10.24in
Fs: 58.7Hz
Mms: 57.21g/2.02oz
Qms: 2.514
Qes: 0.326
Mmd: 50.28g/1.78oz
Qts: 0.288
Re: 5.69ohm
Vas: 51.21lt/1.808ft3
BI: 19.54Tm
Cms: 0.128mm/N
Rms: 8.397kg/s
Le (at 1kHz): 0.78mH

Informazioni di Montaggio
Overall diameter: 318mm/12.5in
Overall depth: 137mm/5.39in
Cut-out diameter: 286mm/11.26in
Mounting slot dimensions: 9.5mm x 6.5mm/0.37in x 0.26in
Number of mounting slots: 8
Mounting slot PCD range: 298-304mm/11.7-12.0in
Unit weight: 2.6kg/5.7lb

Note
(1)Tested for two hours using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance. Loudspeaker tested in free air.

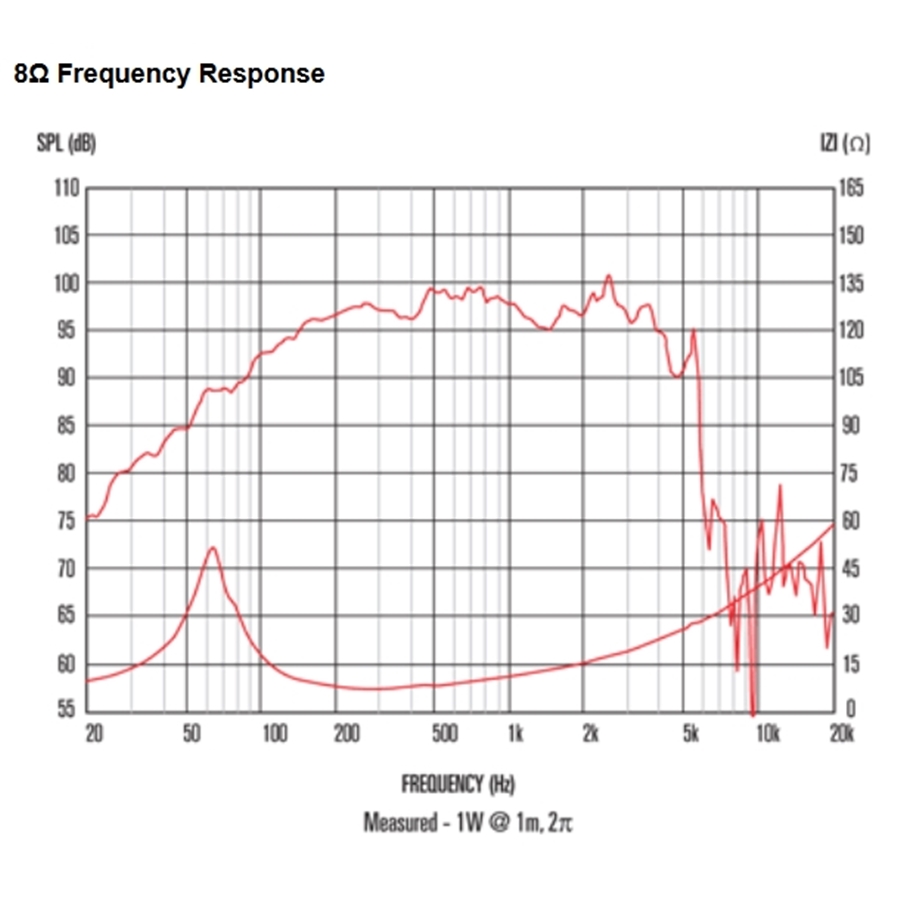

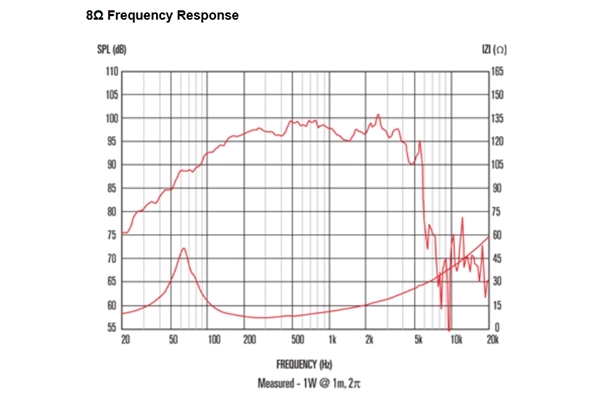

(2)Measured on axis at 1W, 1m in 2pi anechoic environment.
(3)Xmax derived from: (voice coil winding width-gap depth)/2.
(4)Small signal parameters measured after unit subjected to pre-conditioning signal.
