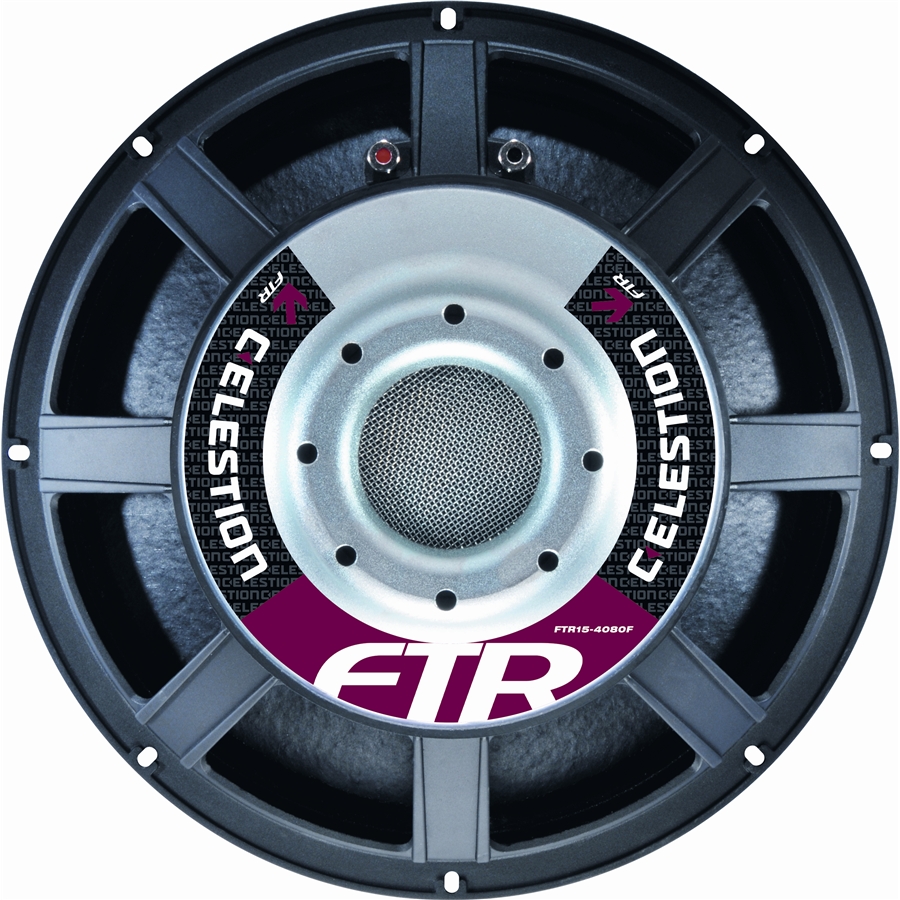

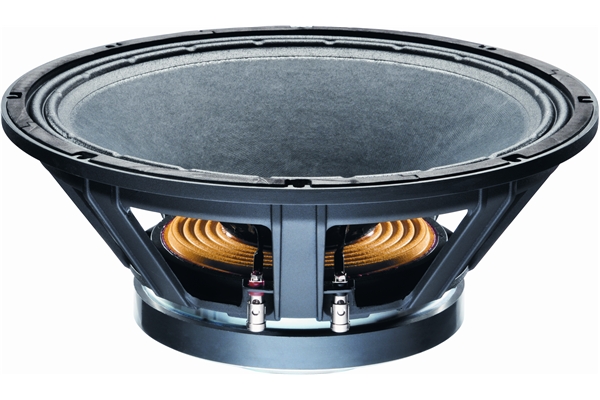

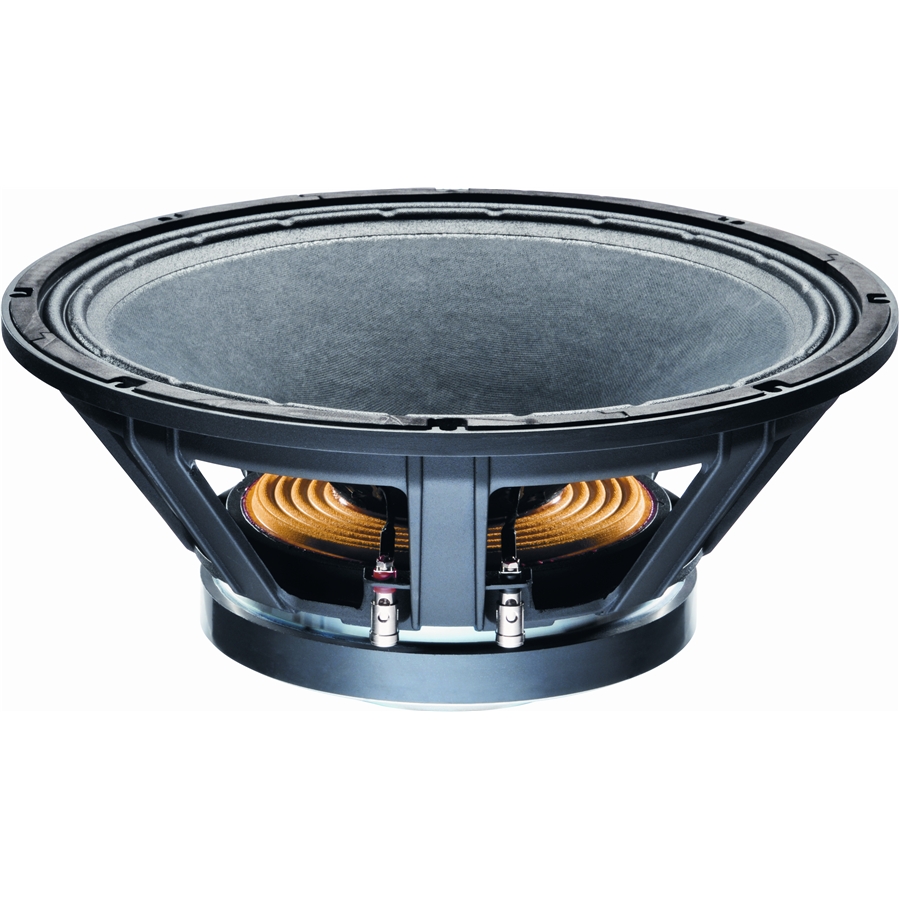

Celestion - FTR15-4080F 600W 8ohm LF Ferrite

Celestion - FTR15-4080F 600W 8ohm - LF Die Cast Chassis Loudspeaker - Ferrite
Altoparlante da 15" con chassis in fusione d'alluminio, magnete in ferrite, bobina da 4", potenza 600Watt, impedenza 8ohm

Caratteristiche
- 15" ferrite woofer provides 600Wrms power handling (AES Standard) and 97dB sensitivity
- 4" high temperature Inside/Outside voice coil efficiently dissipates heat, preventing sensitivity loss through thermal compression
- FlexirolTM surround for greater excursion control
- Low frequency response, down to 35Hz
- Smart chassis design minimises acoustic distortion
- Specially treated weather-resistant cone

Specifiche Generali
Nominal diameter: 381mm/15in
Power rating(1): 600Wrms
Continuous power rating(2): 1200W
EIA power rating(3): 800W
Nominal impedance: 8ohm
Sensitivity(4): 97dB

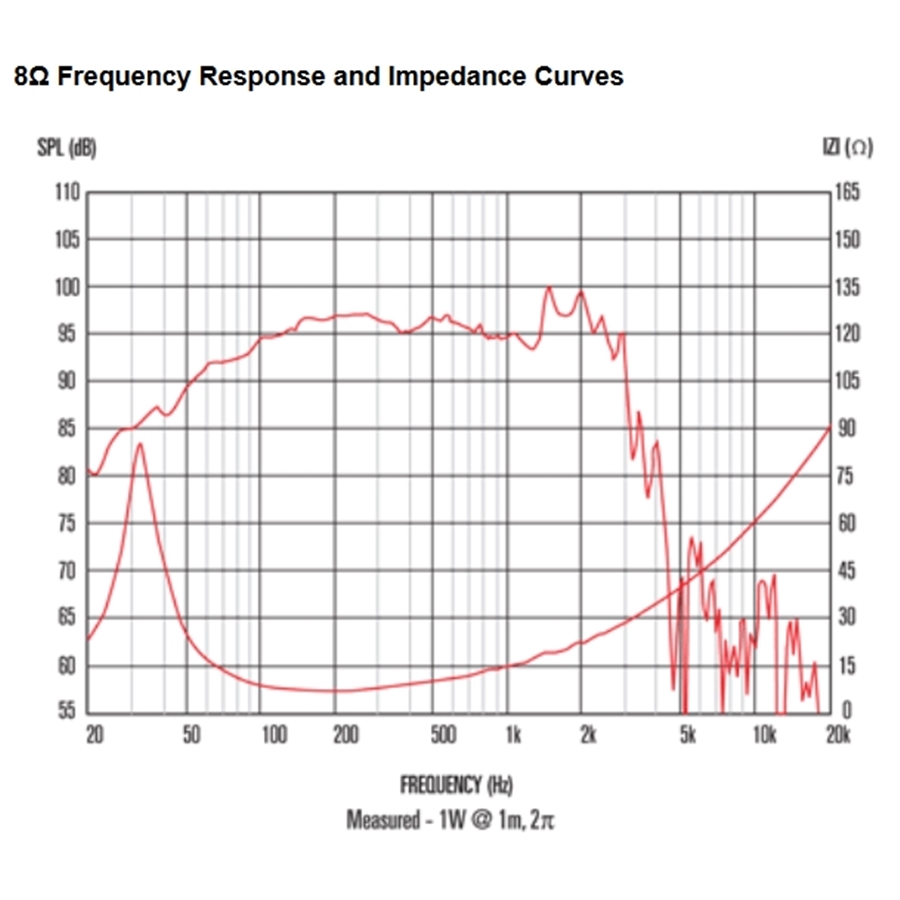

Frequency range: 35-3000Hz
Voice coil diameter: 100mm/4in
Chassis type: Cast Aluminium
Magnet type: Ferrite
Magnet weight: 3.1kg/110oz
Coil material: Round copper
Former material: Glass fibre
Cone material: Glass loaded paper with weather-resistant impregnation
Surround material: Cloth-sealed
Suspension: Single
Xmax(5): 6mm/0.24in
Gap depth: 10mm/0.39in
Voice coil winding width: 22mm/0.87in

Parametri di Thiele-Small
D: 0.33m/12.99in
Fs: 35Hz
Mms: 117.83g/4.16oz
Qms: 3.68
Qes: 0.26
Mmd: 103.68g/3.66oz
Qts: 0.24
Re: 5.62ohm
Vas: 182.8lt/6.45ft3
BI: 23.69Tm
Cms: 0.18mm/N
Rms: 7.019kg/s
Le (at 1kHz): 1.48mH

Informazioni di Montaggio
Overall diameter: 385mm/15.16in
Overall depth: 170mm/6.69in
Cut-out diameter: 351mm/13.82in
Mounting slot dimensions: 10mm x 7mm/0.39in x 0.27in
Number of mounting slots: 8
Mounting PCD range: 365-375mm/14.37-14.76in
Unit weight: 9.4kg/20.7lb

Note
(1)Tested for two hours using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance. Loudspeaker tested in free air.
(2)Continuous Power Handling is defined as 3dB greater than the AES rating.
(3)Tested as per the EIA-426-A standard.
(4)Measured on axis at 1W, 1m in 2pi anechoic environment.
(5)Xmax derived from: (voice coil winding width-gap depth)/2.
(6)Small signal parameters measured after unit subjected to pre-conditioning signal.
