Altoparlante da 12" con chassis in fusione d'alluminio, magnete in ferrite, bobina da 4", potenza 1000Watt, impedenza 8ohm

Cod. prodotto: 15300048

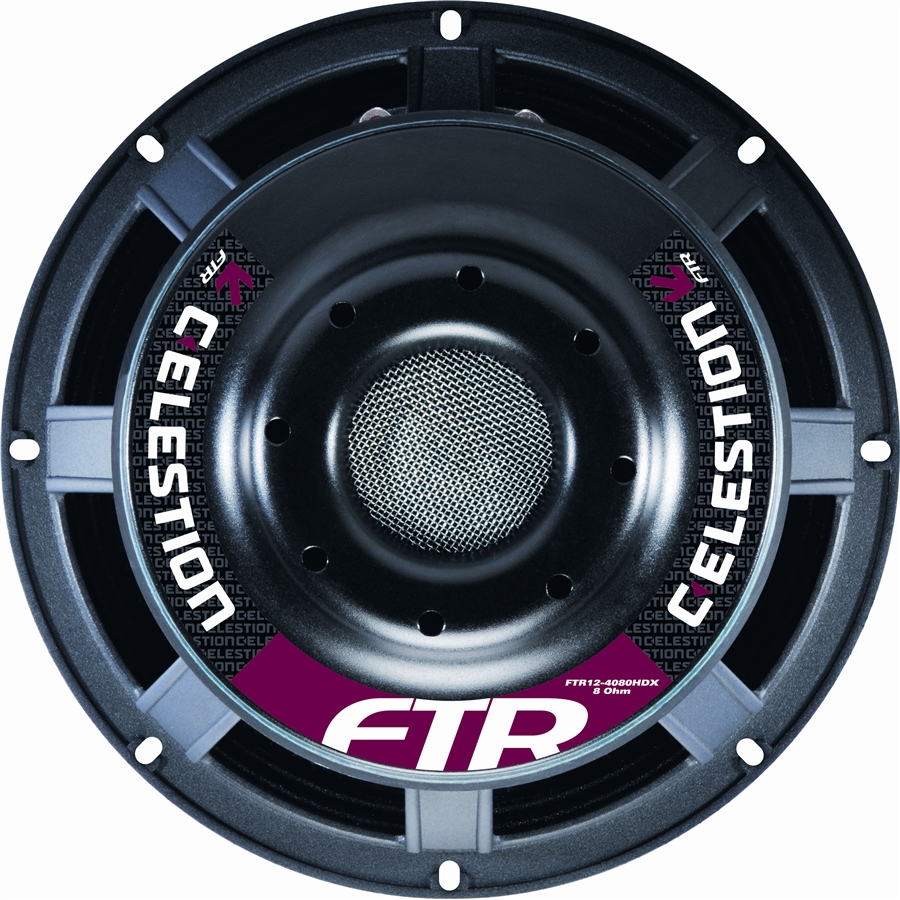

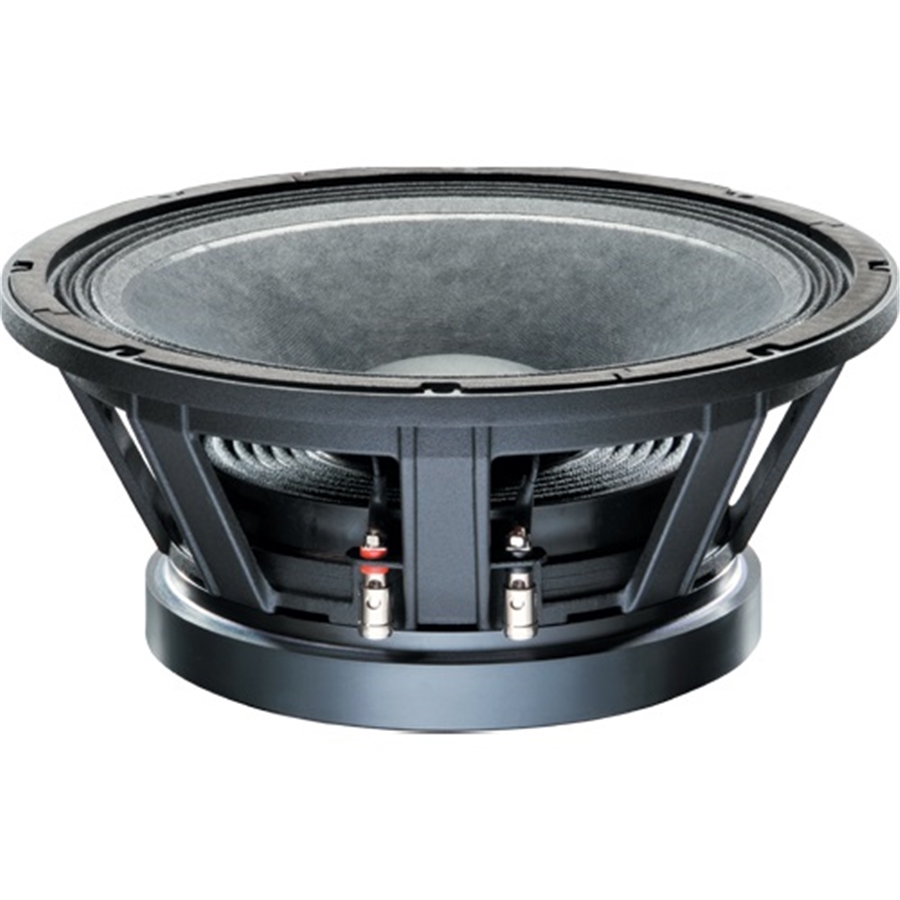

Celestion - FTR12-4080HDX 1000W 8ohm - LF Die Cast Chassis Loudspeaker - Ferrite
Altoparlante da 12" con chassis in fusione d'alluminio, magnete in ferrite, bobina da 4", potenza 1000Watt, impedenza 8ohm

- 12" ferrite subwoofer provides 1000Wrms (AES standard) power handling and a frequency response of 47Hz-3kHz
- 4" high temperature Inside/Outside voice coil efficiently dissipates heat, preventing sensitivity loss through thermal compression
- Double suspension and a "multi-roll" surround provide exceptional linearity at extremes of cone excursion
- Intelligent heat management in both chassis and magnet assembly design further minimizes distortion

Specifiche Generali
Nominal diameter: 305mm/12in
Power rating(1): 1000Wrms
Continuous power rating(2): 2000W
Nominal impedance: 8ohm
Sensitivity(3): 93dB

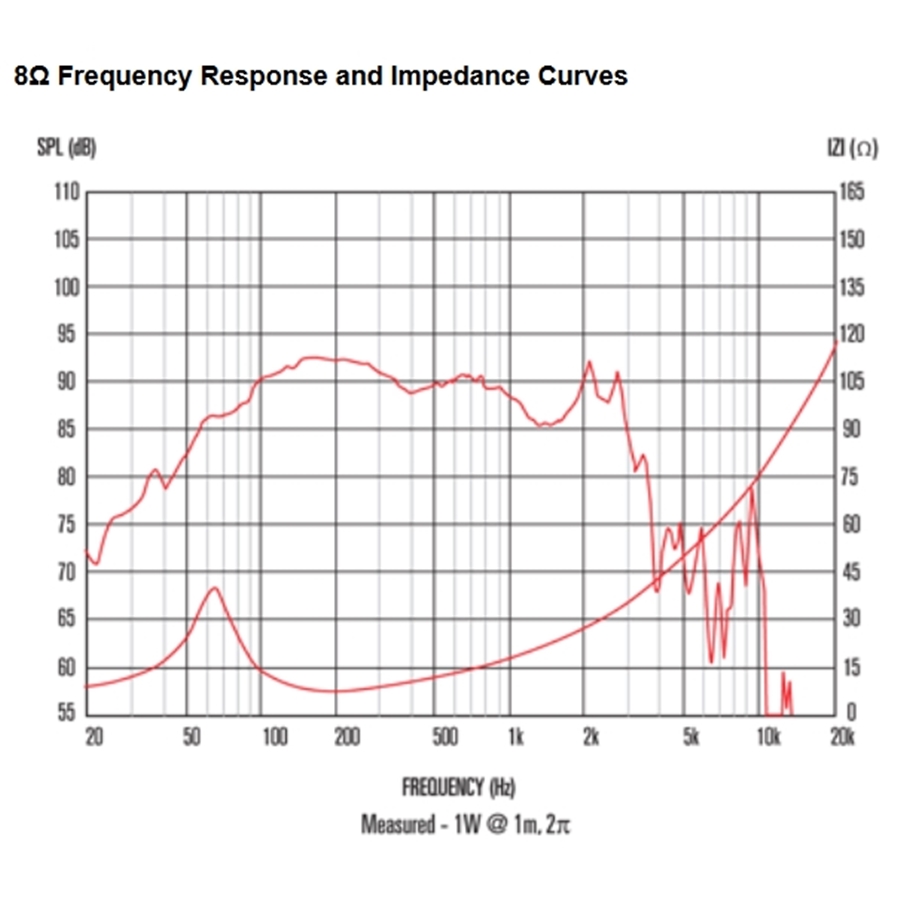

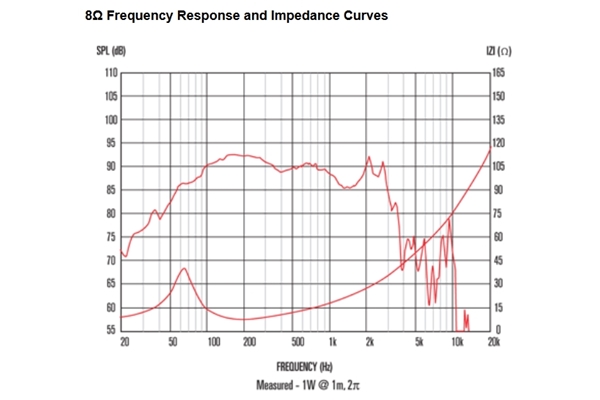

Frequency range: 47-3000Hz
Voice coil diameter: 100mm/4in
Chassis type: Cast aluminium
Magnet type: Ferrite
Magnet weight: 3.1kg/110oz
Coil material: Round copper
Former material: Glass fibre
Cone material: Glass loaded paper with weather-resistant impregnation
Surround material: Cloth-sealed
Suspension: Double
Xmax(4): 8mm/0.32in
Gap depth: 9.5mm/0.37in
Voice coil winding width: 25mm/0.98in

Parametri di Thiele-Small
D: 0.26m/10.24in
Fs: 61.2Hz
Mms: 108.68g/3.84oz
Qms: 2.228
Qes: 0.446
Mmd: 101.76g/3.59oz
Qts: 0.372
Re: 6.05ohm
Vas: 24.79lt/0.875ft3
BI: 23.81Tm
Cms: 0.062mm/N
Rms: 18.768kg/s
Le (at 1kHz): 1.92mH

Informazioni di Montaggio
Overall diameter: 313mm/12.3in
Overall depth: 158mm/6.2in
Cut-out diameter: 282mm/11.1in
Mounting slot dimensions: 10mm x 7mm/0.39in x 0.27in
Number of mounting slots: 8
Mounting PCD range: 291-301mm/11.7-11.9in
Unit weight: 9.6kg/21.1lb

(1)Tested for two hours using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance. Loudspeaker tested in free air.
(2)Continuous Power Handling is defined as 3dB greater than the AES rating.
(3)Measured on axis at 1W, 1m in 2pi anechoic environment.
(4)Xmax derived from: (voice coil winding width-gap depth)/2.
(5)Small signal parameters measured after unit subjected to pre-conditioning signal.
